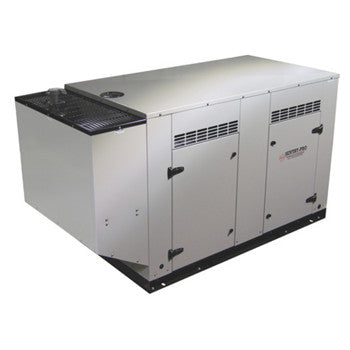

Gillette 60kW Gaseous Standby Generator: SP-620
62kW Gen Set
Health care institutions, hotels, medical centers, office buildings, all have critical power needs. Gillette offers the solution to protect them with LP/natural gas powered generator systems. Gillette power generation systems are engineered for reliability, durability, and performance.
- All generator sets are USA prototype built and thoroughly tested. Production models are USA factory built and 100% load tested.
- All generator sets meet NFPA-110. Level 1, when equipped with the necessary accessories and installed per NFPA standards.
- All generators are UL-1446 certified, and UL-2200 certified.
- Solid state, frequency compensated voltage regulation is standard.
- Electronic engine governor for precise isochronous frequency regulation.
- SENTINEL ULTIMATE digital controller allows programming to basic engine functions in the field. Controller has stop-manual-auto mode and engine shutdowns, signaled by full text LCD indicators.
- Heavy Duty 100%-125% rated Circuit Breaker is standard on all gen-sets.
- All generator set control systems components and accessories provide a 1-year limited warranty at time of initial start-up. Generators and engines are governed by separate warranties.
BELOW SPECS REFLECT 1-PHASE. UNITS ARE AVAILABLE IN 3-PHASE AS WELL AT THE SAME PRICE
|NG Max Cont. kW||58|
|NG Max Cont. Amps||242|
|LP Max kW||60|
|LP Max Cont. Amps||250|
|Engine Model||Vortec, 5.7L, 4 cycle|
|Fuel Consumption 100% Load (LP)||330/9.3 (FT3 Hr/M3 Hr)|
|Fuel Consumption 100% Load (NG)||800 ft3/hr|
|Available Voltages||choose 1 or 3 ph|
|THD||Less Than 6%|
|Generator Temp. Rise||130/30 degrees C|
|No Load db(a)||69 (Avg)|
|Full Load db(a)||73 (Avg)|
